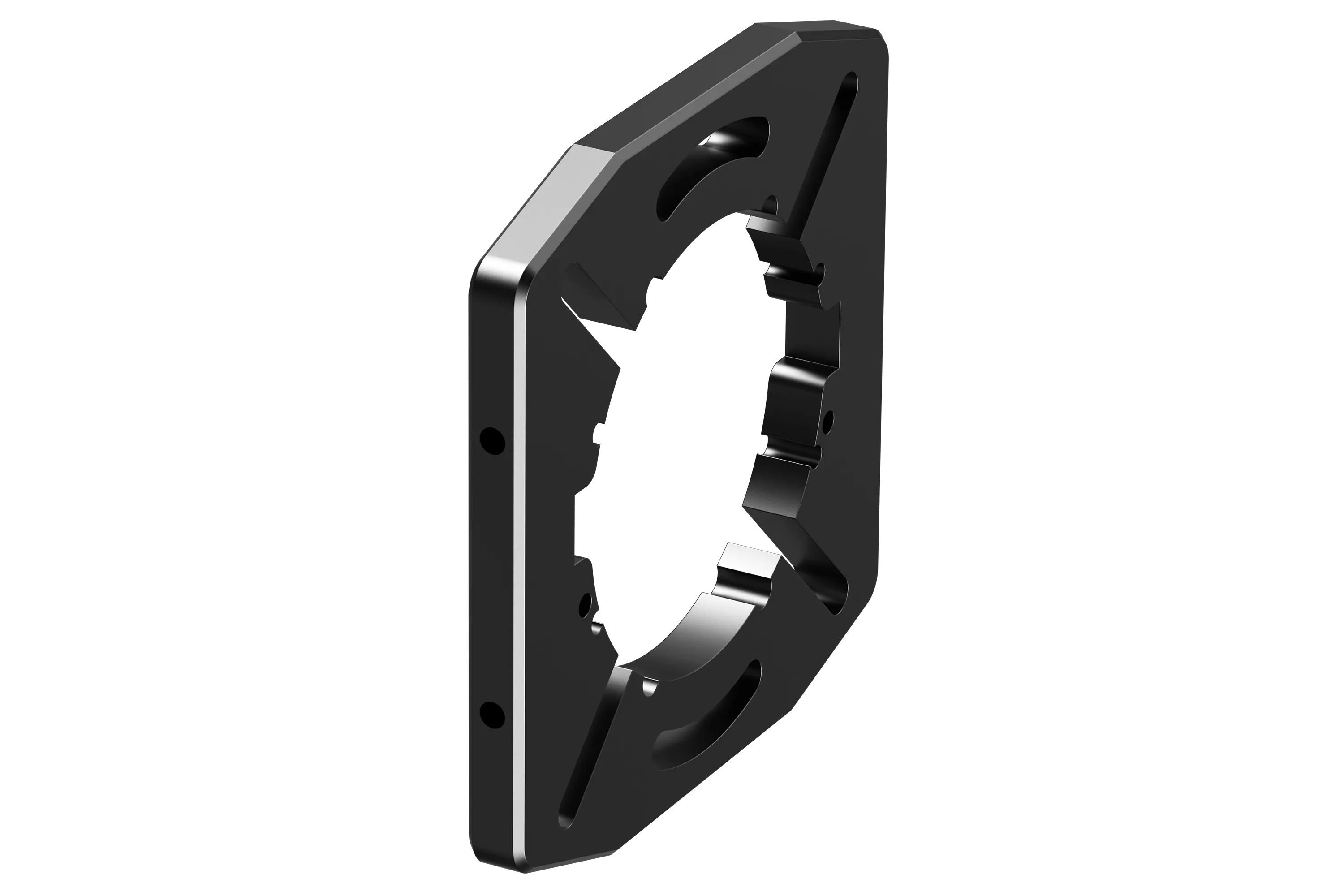

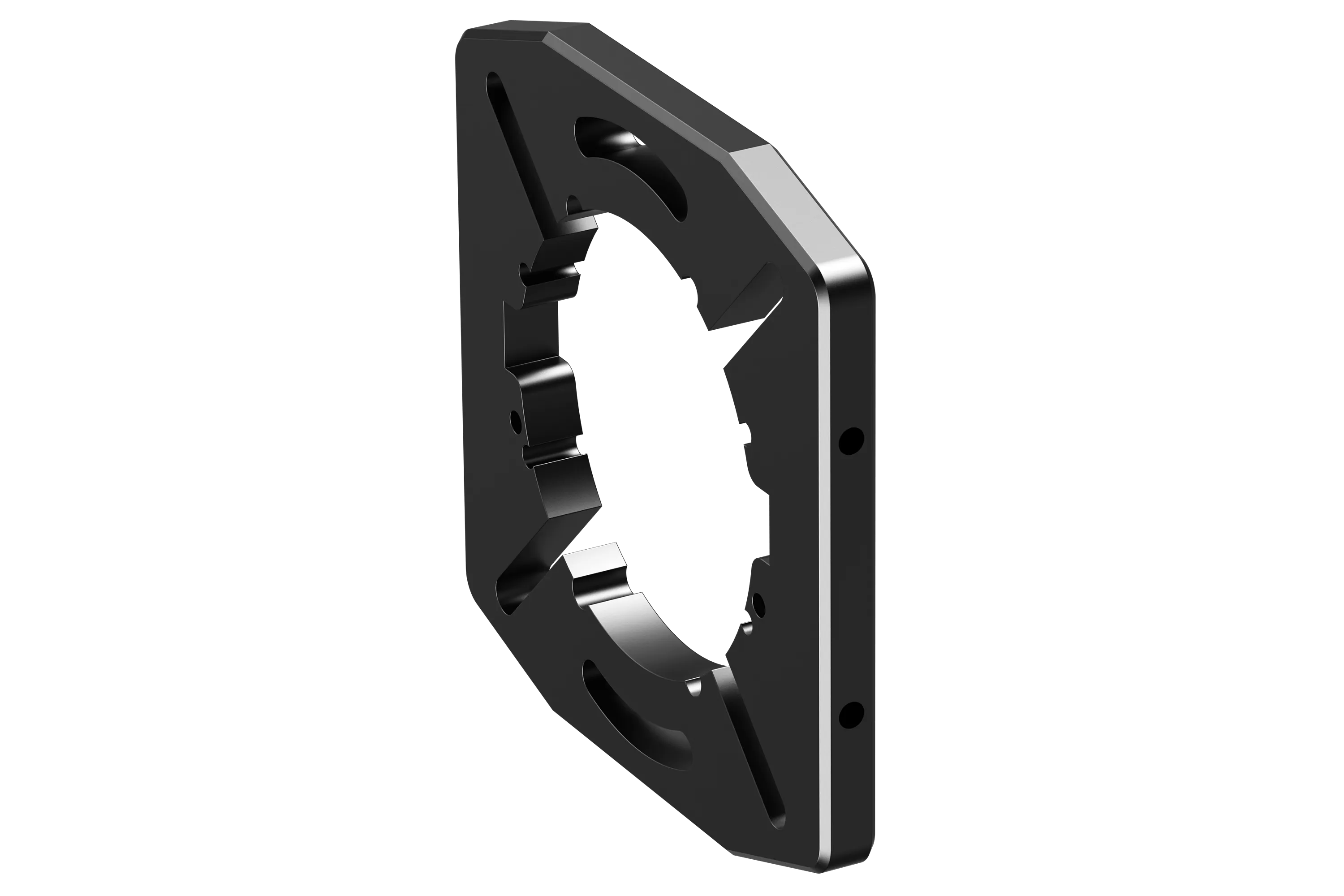

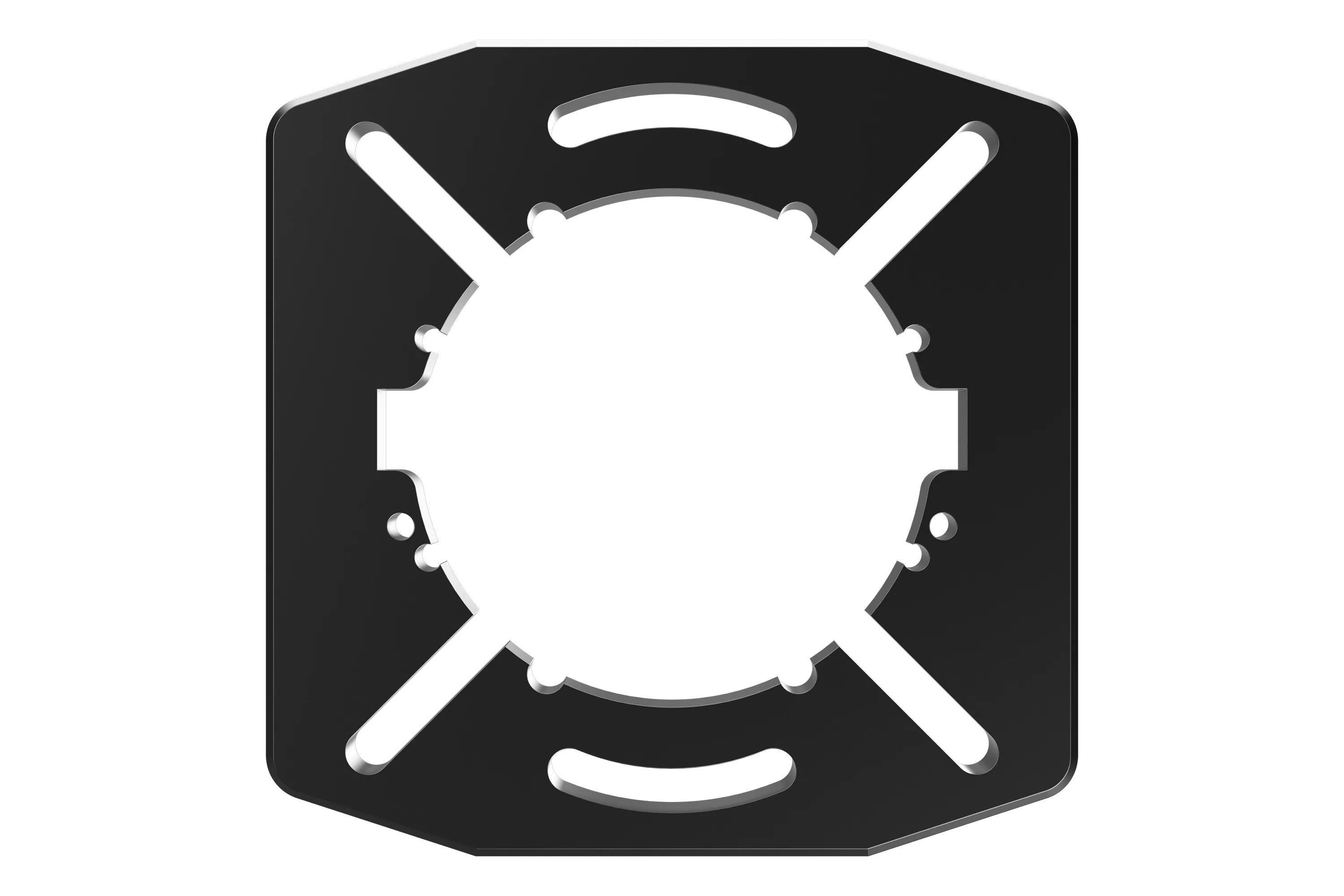

TR-One Direct Drive Wheel Mount Plate
About the TR One Wheel Mounting System
The TR One Wheel System is a Future Proof Wheel Mounting System that allows you to upgrade by replacing only a part of the mount depending on what wheel base you mount. The base structure is made of thick-walled extruded aluminium and the plates are meticulously crafted from high-quality aluminium then anodized.
The design of the aluminium plates allows for angle and distance adjustment. The base kit (Part Number: TR80-NWMA) consists of 2 x High-Quality 80x40mm Aluminium Profiles and 4 Red Anodised Aluminium Plates. Optional wheel mounts include a wheel deck and direct-drive front mounting plate - but this list will expand as more wheelbase brands become available. The plates themselves are extremely rigid and have a lot of adjustment for angle and forward/backwards fine-tuning - to get a perfect position!
Note: This part also requires Trak Racer TR8020 Fully Adjustable Direct Fit Wheel Mount (SKU "TR80-NWMA")
- This is an add-on plate that requires side supports (if you don't already have them - Trak Racer Part No. TR80-NWMA
- Constructed from Tooled-Aluminium and 15mm Thick makes this plate is the most rigid on the market
- Zero flex and no weak points
- Quick and easy adjustments when fitted with the Trak Racer Side Mounts (not included)
- All the necessary mounting hardware is included for a quick and easy installation

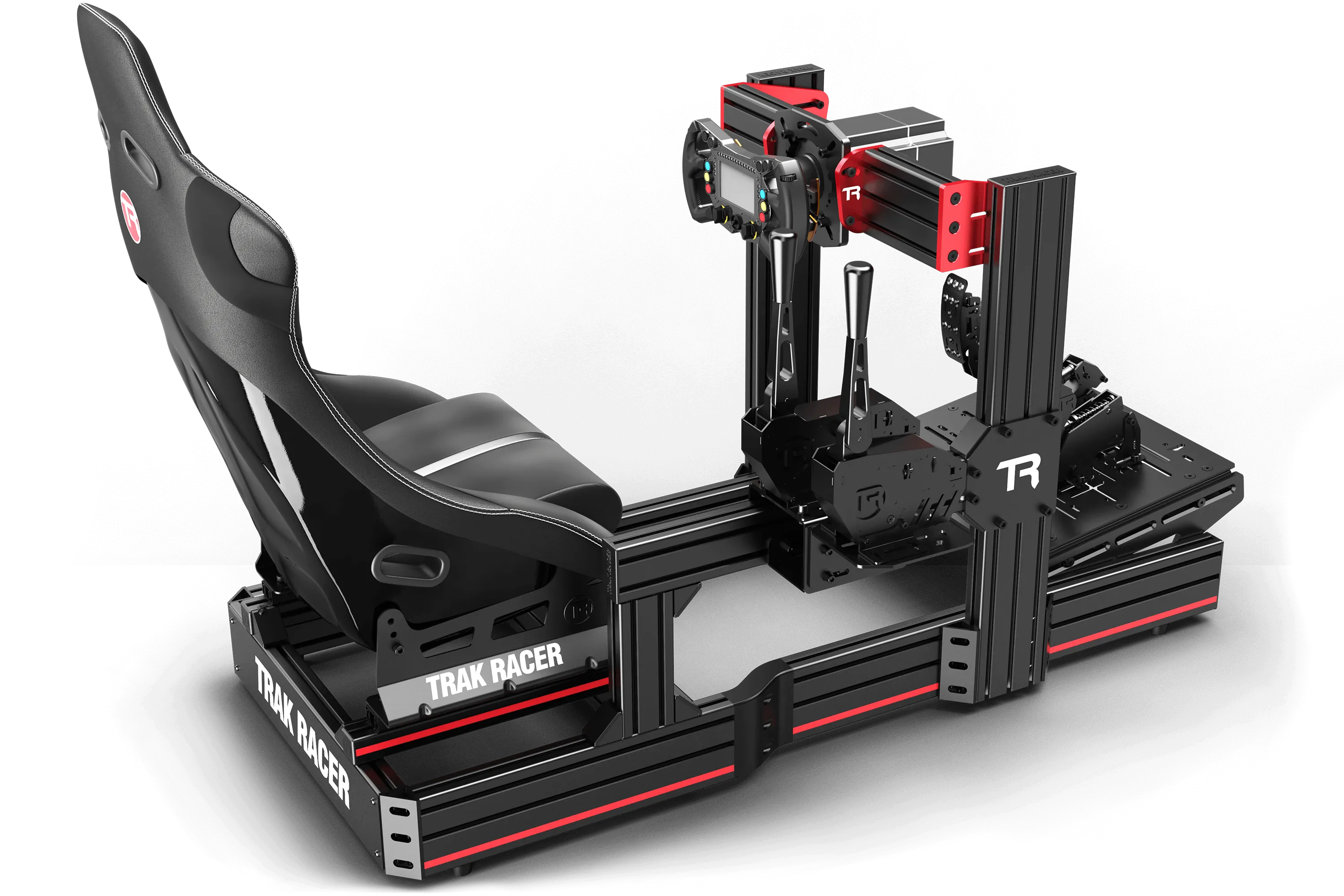

When fitted with the Side Supports (TR80-NWMA), this part is compatible with Trak Racer Extruded Aluminium Rigs and other DIY Builds and has a total width of 580mm
Front Direct Drive Mount Compatibility:
| Trak Racer Direct Drive (all Variants) Wheelbase | Simagic Alpha / Alpha Mini/ Ultimate |
| Simucube SC1 / SC2 Sport, Pro, Ultimate | Lenze MCS12 series |
| VRS Force Pro | Kollmorgen AKM 52-53-54 (OSW and Leo Bodnar Simsteering systems) |
| AccuForce V1/V2 (turn the top cover around to fit) | Ricmotech Mini-Mite Direct-Drive Steering System Base |
| MiGe 130ST(small and big) | Immsource ET3 and ET5 |
| Bodnar 53 series | Contact us if your product is not listed |
5 Year Warranty
Specifications:
- Plate thickness: 15mm
- Material: High-Grade Aluminium
- Plate Width (without TR80-NWMA): 180mm
- Plate Width (with TR80-NWMA): 580mm
5 Year Warranty
