Product Details
＋

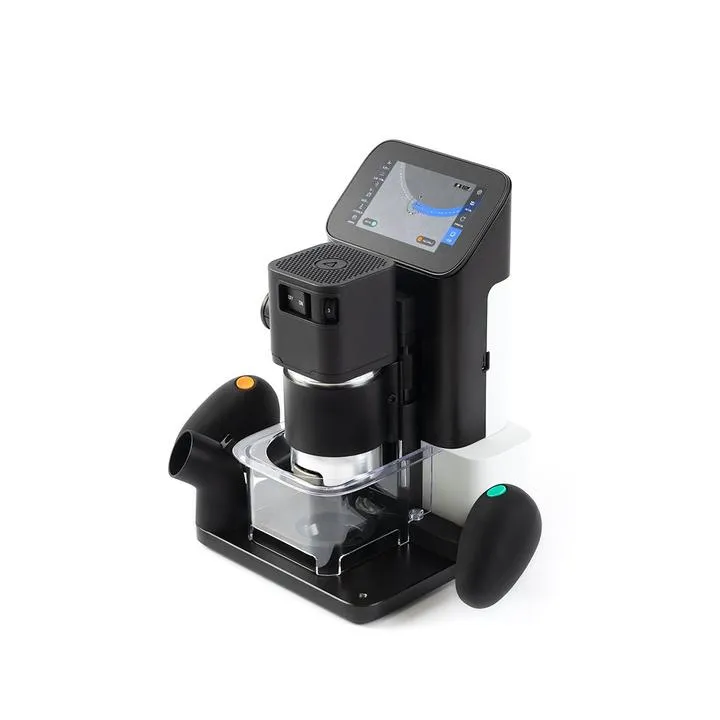

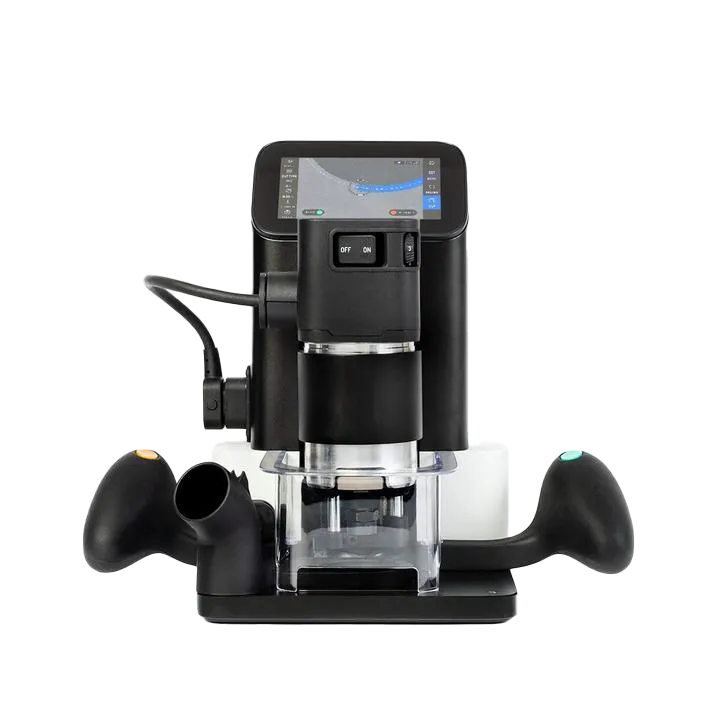

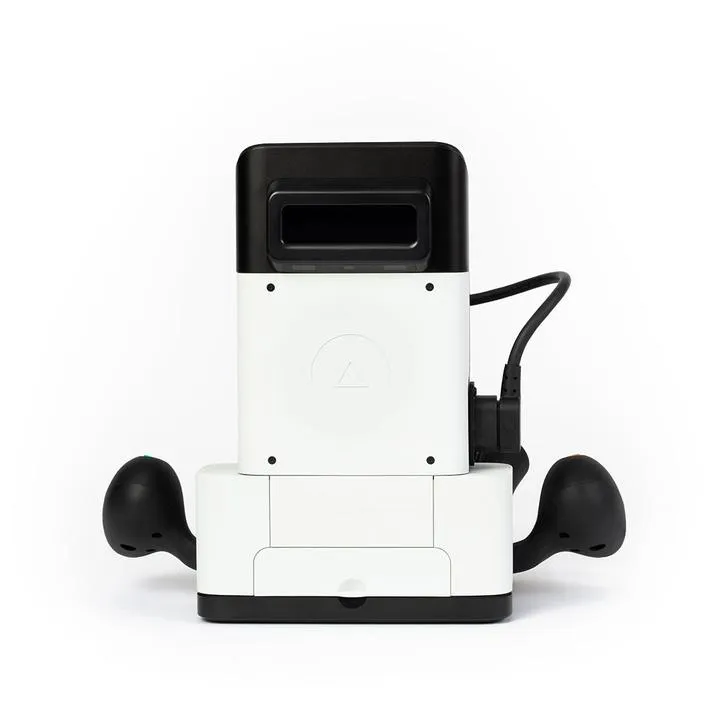

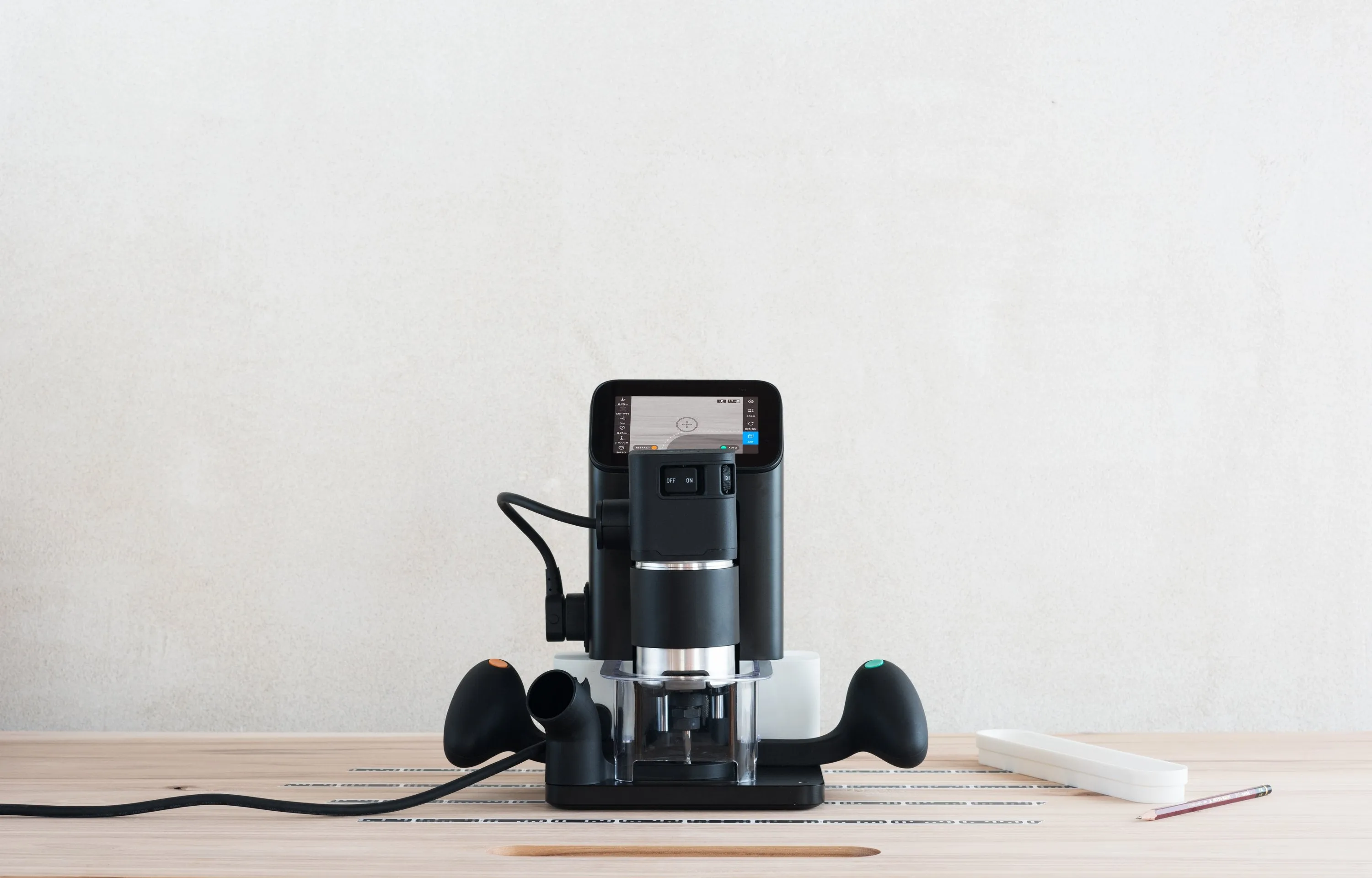

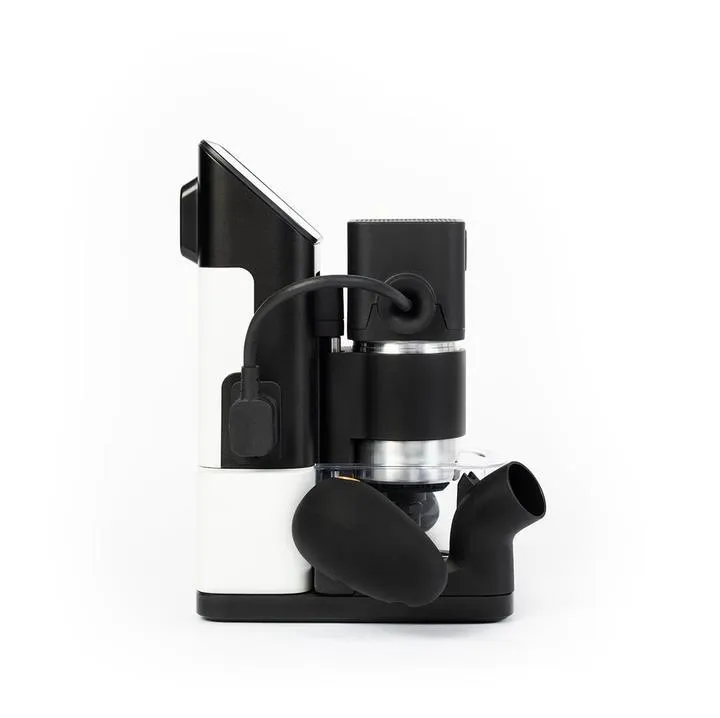

Shaper Tools - Shaper Origin - Handheld CNC Router and Cutting Solution
10,000 - 26,000 RPM with load-compensating speed control
Soft-start, over-temperature and over-load safety cut-offs
Produced by Festool to Shaper specifications
⅛” (3.175mm) collet sold separately, available from Shaper
34mm inner diameter by 39mm outer diameter port dimensions
Fits most standard 27mm (35mm OD) and 36mm suction hoses (e.g. Festool, Fein)
Includes a 6.5’ (2m) adaptor hose with a 2 ¼” (5.7cm) OD nozzle
Digitally adjustable depth-of-cut
Automated touch-off sensor
USB port allows easy offline transfer of design files
Includes on-tool design capabilities
Systainer: 39.6cm x 29.6cm x 42cm (SYS 5 T-LOC Systainer)
Packaged (with accessories) in Systainer: 10.7kg
Shaper Origin combines computer-guided accuracy with hand-held familiarity. Cut with unparalleled precision, flexibility and efficiency. Shaper Origin uses computer vision to understand its location relative to a work-piece and precision motors to continuously fine-tune the spindle's position along your intended cutting path. We think of it as auto-correct for your hands.
- Input Power: 120VAC, 60Hz. 7A
- 720W brushed AC motor
- 10,000 - 26,000 RPM with load-compensating speed control
- Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updates
- Works with .SVG files
- 43mm (1.7”) of total Z-axis travel
- Designed with the SM-1 spindle to provide optimal debris extraction
- Capacitive multi-touch full-color LCD
- Shaper Origin with Shaper SM-1 Spindle
- Tanos Systainer
- Two rolls of ShaperTape (45.7m each)
- Tool change accessories
- USB flash drive
- ¼-inch (6.35mm) upcut spiral cutter
- ⅛-inch (3.175mm) upcut spiral cutter
- 60° engraving cutter
- Universal dust collection adapter
- One-year warranty
Input Power
120VAC, 60Hz. 7ASpindle Motor
720W brushed AC motor10,000 - 26,000 RPM with load-compensating speed control
Soft-start, over-temperature and over-load safety cut-offs
Produced by Festool to Shaper specifications
Collet
Includes a ¼” (6.35mm) collet that accepts any commonly available ¼” (6.35mm) shank router bits⅛” (3.175mm) collet sold separately, available from Shaper
Dust Extraction Port
Designed with the SM-1 spindle to provide optimal debris extraction34mm inner diameter by 39mm outer diameter port dimensions
Fits most standard 27mm (35mm OD) and 36mm suction hoses (e.g. Festool, Fein)
Includes a 6.5’ (2m) adaptor hose with a 2 ¼” (5.7cm) OD nozzle
Depth Control
43mm (1.7”) of total Z-axis travelDigitally adjustable depth-of-cut
Automated touch-off sensor
Connectivity
Wi-Fi enabled for transfer of design files via ShaperHub, and for receiving software updatesUSB port allows easy offline transfer of design files
Digital Cut Files
Works withIncludes on-tool design capabilities
Touch Screen
Capacitive multi-touch full-color LCDDimensions
Origin: 35cm (handle-to-handle) x 19.7cm x 29.9cmSystainer: 39.6cm x 29.6cm x 42cm (SYS 5 T-LOC Systainer)
Weight
Origin: 6.6kgPackaged (with accessories) in Systainer: 10.7kg
