The OmniDTF Plus Direct To Film Printer is engineered for industrial-grade performance, making it perfect for high-speed, continuous production. Its expansive 36-inch print area and four advanced Epson i3200 print heads deliver vibrant, detailed designs on a large scale. Equipped with an efficient bulk ink system, intelligent feeding, and precise color management, it ensures consistent, high-quality results while minimizing operational costs. Ideal for both small and large production environments, this versatile printer also features customizable settings and easy maintenance, boosting productivity and reducing downtime.

Print Speed: Approx. 400 - 12x12in transfers per hour.

OmniDTF PLUS ADVANTAGE

• Industrial-Grade Performance: Designed for high-speed, continuous production.
• Wide Print Area: 36-inch print area for larger designs.
• Four Advanced Print Heads: Equipped with 4 Epson i3200 high-resolution print heads.
• Efficient Ink System: Industrial bulk ink system with white ink circulation.
• Intelligent Feeding System: Proprietary feeding and tension system for reliable production.
• Advanced Heating Controls: Multi-zone film preheating and post-heating controls.
• Superior Color Management: Utilizes OmniPrint Direct Rip for optimal print and color management.
• Precision Engineering: Ensures consistent, high-quality prints.
• Low Maintenance: Designed for easy maintenance and minimal downtime.
• Scalability: Ideal for both small and large production environments.
• Flexible Output: Capable of handling various media types and thicknesses.
• Energy Efficient: Built with energy-saving features to reduce operational costs.
• Customizable Settings: Allows for tailored printing parameters to meet specific needs.

FEATURES

• Printing speed : 50-130 Linear Ft Per hour
• Prints per hour (estimated) : 250 full size prints
• Print resolutions: 360x2400, 720x1200, 720x1800
• Supported media types : - Omni Direct Film Hot Peel
• Rip Software : Omni DirectRip DTF
• Ink Type Compatibility: Gamut Hybrid Ink - Water Based DTF Ink (e.g., CMYK White)
• Connectivity : Ethernet/USB
• Print size : Large 36" Print Area
• Print Heads : (4) i3200- (Precision Core Technology)
• User Interface : OmniDTF User Interface
• Film Heaters : Multi Zone Film preheating and under platen heating controls
• Power Requirements - Printer : 110V 15 Amps, Dedicated circuit , Surge
• Protection Required for warranty
• Machine size: 83.1" x 35.3" x 61.7"
• Machine Weight: 800lbs
• Curing Oven Size: 94.2" x 52.2" x 39.1"
• Curing Oven Weight: 650lbs
• Power requirements - Oven: 220V, 30A
• Climate control: Temp max 75 degrees F and 40 - 60% humidity
• Venting: to the outside with an exhaust fan or vacuum filtration system.
• PC Recommendations: OS Windows 10® Pro (64bit) or Windows 11® Pro (64bit) CPU Intel® Core™ i7-8th Gen or newer
• Memory 16GB or more
• HDD 1TB SSD or more
• Interface: Ethernet, USB C/USB 3.0

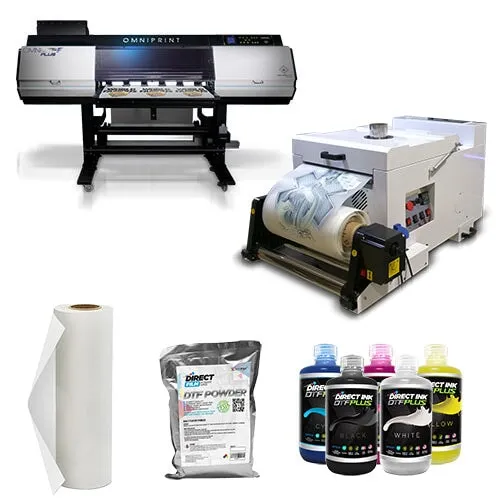

WHAT IS INCLUDED

• OmniDTF Plus Direct to Film (DTF) Printer
• 36" Curing Oven
• Omni DTF Software
• Starter Ink Set (CMYK W)
• 1 Roll of Film
• DTF Powder - 1kg
• Super Cleaner - 500ml
• Swabs
• Grease
• Humidity Gauge
• 8oz Bottle

PRODUCT DATA SHEETS
