Product Details
＋

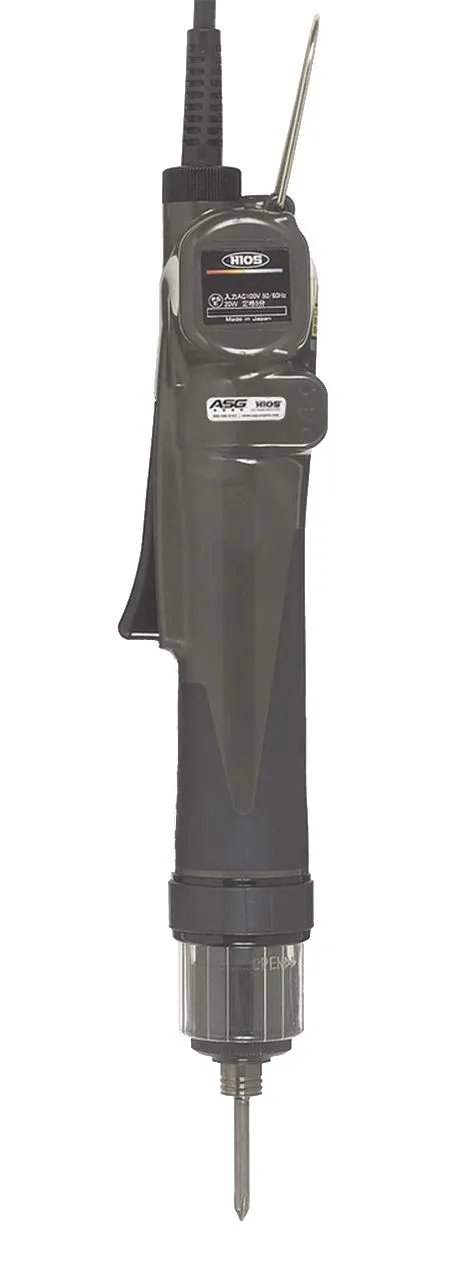

- HIOS direct plug-in electric screwdriver
- Brushless motor offers high performance and low maintenance, eliminates carbon dust for cleaner operation
- 1/4" Hex drive
- Intended for a duty cycle of 0.5 seconds on, 3.5 seconds off
- 5.0 mm drive available. Other torques and speeds available.
Classification
- Product Group: Assembly
- Electric or Pneumatic: Electric
- Manual or Powered: Powered
- Low Voltage DC with Power Source or Direct Plug-in: Direct Plug-in
Specifications
- Model No.: VB-3012
- Brush Type or Brushless: Brushless
- Torque: 4.4 to 26.6 lbf·in (0.5 to 3.0 N·m)
- Body Style: In-line
- Drive Type: 1/4" Hex
- Operation: Lever Start
- Speed (HI): 1200
- Length: 10.4" (263 mm)
- Weight: 1.7 lb. (750 g)
- Voltage (AC)1: 120V
- CE Certified: No
- RoHS Compliant: Yes
- Note: Torque and speed at 120VAC
1110 VAC Std. (220 VAC Opt.)
